Connecting Link

Name: Connecting Link
SKU: S0660-C
Availability: InStock

Type 316-NM stainless steel, for use with chain

Configuration

Available Options

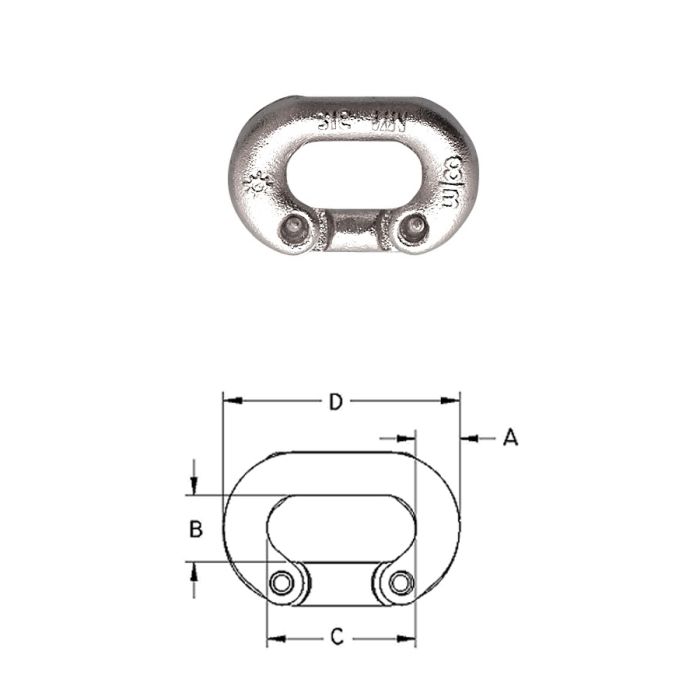

SKU	A (IN)	B (IN)	C (IN)	D (IN)	WLL (LB)	Price	Quantity	SubTotal
S0660-0007	1/4	0.42	0.87	1.50	1400	$10.38	Connecting Link quantity	$
S0660-0008	5/16	0.50	1.00	1.75	2000	$21.19	Connecting Link quantity	$
S0660-0010	3/8	0.57	1.12	2.12	2800	$30.62	Connecting Link quantity	$

Description
Additional information

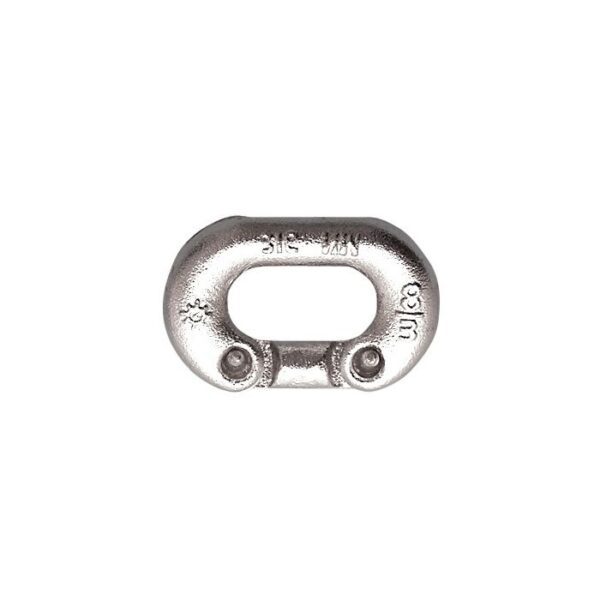

Drop-forged Type 316-NM (non-magnetic) stainless steel connecting links provide a permanent method of joining two lengths of chain or replacing a damaged chain link. The two-piece design joins together for assembly and is permanently secured by installing the supplied riveting pins. The link should never be placed into service unless the riveting pins are fully installed and securely peened.

Features

Manufactured from drop-forged Type 316-NM (non-magnetic) stainless steel for maximum corrosion resistance in marine and industrial environments.
Provides a permanent connection between two lengths of matching-size chain.
Size and Working Load Limit (WLL) are permanently forged into each link for easy identification and traceability.
Working Load Limit is 25% of the minimum breaking load.

Do not run the connecting link through a windlass unless compatibility has been specifically confirmed by the windlass manufacturer.
