SKU: SHGD-C

Chain D Shackle

Hot Dip Galvanized. Import

Configuration

Available Options

SKU	A (IN)	B (IN)	C (IN)	D (IN)	E (IN)	WLL (TONS)	Price	Quantity		SubTotal
SHGD14	1/4	5/16	0.88	0.50	0.63	0.50	$1.02	Chain D Shackle quantity		$
SHGD516	5/16	3/8	1.00	0.53	0.78	0.75	$1.16	Chain D Shackle quantity		$
SHGD38	3/8	7/16	1.28	0.69	0.97	1.00	$2.04	Chain D Shackle quantity		$
SHGD716	7/16	1/2	1.53	0.74	1.12	1.50	$2.25	Chain D Shackle quantity		$
SHGD12	1/2	5/8	1.72	0.84	1.28	2.00	$3.61	Chain D Shackle quantity		$
SHGD58	5/8	3/4	2.03	1.06	1.50	3.25	$4.69	Chain D Shackle quantity		$
SHGD34	3/4	7/8	2.41	1.25	1.81	4.75	$9.05	Chain D Shackle quantity		$
SHGD1	1	1-1/8	3.25	1.75	2.38	8.50	$22.10	Chain D Shackle quantity		$

Description
Additional information

These are hot dip galvanized and forged carbon steel chain D shackles.

Heat treated, will alloy pins
Permanently marked with size and WLL
Meets the requirements of Federal Specification RR-C-271D, Type IV B, Class 2, Grade A

Weight	0.5 lbs
A (IN)	0.09 , 0.10 , 0.12 , 0.14 , 0.20 , 0.24 , 0.25 , 0.27 , 0.28 , 0.29 , 0.32 , 0.34 , 0.36 , 0.37 , 0.3700 , 0.38 , 0.39 , 0.41 , 0.42 , 0.45 , 0.46 , 0.47 , 0.4700 , 0.48 , 0.51 , 0.52 , 0.53 , 0.54 , 0.56 , 0.59 , 0.60 , 0.62 , 0.63 , 0.67 , 0.68 , 0.75 , 0.76 , 0.77 , 0.78 , 0.7800 , 0.79 , 0.80 , 0.83 , 0.85 , 0.87 , 0.88 , 0.90 , 0.94 , 0.95 , 0.96 , 1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-1/8 , 1-3/4 , 1-3/8 , 1.01 , 1.05 , 1.06 , 1.12 , 1.24 , 1.28 , 1.31 , 1.42 , 1/16 , 1/2 , 1/2 , 1/4 , 1/8 , 1/8-3/16 , 11/16 , 11/32 , 15/32 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 3 , 3-1/2 , 3-3/4 , 3/16 , 3/4 , 3/8 , 3/8 , 4 , 4-3/4 , 5/16 , 5/16 , 5/32 , 5/8 , 6 , 7/16 , 7/32 , 7/8 , 9/16 , 9/32
B (IN)	1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-3/8 , 1-5/8 , 1/2 , 1/4 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 2-9/16 , 3 , 3-1/4 , 3/4 , 3/8 , 5/16 , 5/8 , 7/16 , 7/8
C (IN)	0.08 , 0.15 , 0.18 , 0.19 , 0.20 , 0.22 , 0.23 , 0.25 , 0.27 , 0.29 , 0.30 , 0.31 , 0.32 , 0.33 , 0.34 , 0.35 , 0.36 , 0.37 , 0.38 , 0.39 , 0.40 , 0.41 , 0.42 , 0.43 , 0.45 , 0.46 , 0.47 , 0.48 , 0.49 , 0.50 , 0.51 , 0.52 , 0.53 , 0.54 , 0.55 , 0.56 , 0.57 , 0.58 , 0.59 , 0.60 , 0.61 , 0.62 , 0.63 , 0.65 , 0.66 , 0.67 , 0.68 , 0.69 , 0.70 , 0.71 , 0.72 , 0.73 , 0.75 , 0.76 , 0.78 , 0.79 , 0.80 , 0.82 , 0.83 , 0.87 , 0.88 , 0.90 , 0.92 , 0.93 , 0.94 , 0.95 , 0.97 , 1.00 , 1.01 , 1.02 , 1.04 , 1.05 , 1.06 , 1.08 , 1.09 , 1.11 , 1.12 , 1.14 , 1.15 , 1.17 , 1.19 , 1.20 , 1.23 , 1.24 , 1.25 , 1.27 , 1.28 , 1.31 , 1.32 , 1.34 , 1.37 , 1.38 , 1.40 , 1.42 , 1.44 , 1.45 , 1.46 , 1.48 , 1.50 , 1.53 , 1.54 , 1.56 , 1.57 , 1.62 , 1.67 , 1.68 , 1.69 , 1.70 , 1.71 , 1.72 , 1.73 , 1.75 , 1.83 , 1.8438 , 1.85 , 1.86 , 1.87 , 1.88 , 1.89 , 1.90 , 1.94 , 1.95 , 1.97 , 10.25 , 10.37 , 10.38 , 10.50 , 10.63 , 10.75 , 10.81 , 10.87 , 11.00 , 11.50 , 11.62 , 12.00 , 12.50 , 13.00 , 13.50 , 14.00 , 14.25 , 14.32 , 14.50 , 14.81 , 15.00 , 15.13 , 15.50 , 15.63 , 16.25 , 17.00 , 17.31 , 18.00 , 19.00 , 2.00 , 2.03 , 2.05 , 2.08 , 2.12 , 2.25 , 2.26 , 2.32 , 2.37 , 2.38 , 2.40 , 2.41 , 2.42 , 2.44 , 2.50 , 2.52 , 2.53 , 2.56 , 2.62 , 2.63 , 2.75 , 2.77 , 2.83 , 2.8750 , 2.88 , 2.92 , 20.00 , 24.00 , 25.00 , 25.50 , 26.63 , 27.50 , 28.38 , 3.00 , 3.10 , 3.13 , 3.18 , 3.25 , 3.2500 , 3.36 , 3.38 , 3.39 , 3.41 , 3.44 , 3.70 , 3.72 , 3.78 , 3.81 , 3.92 , 3.98 , 4.00 , 4.20 , 4.25 , 4.32 , 4.37 , 4.48 , 4.50 , 4.63 , 4.69 , 4.71 , 4.72 , 4.75 , 4.76 , 4.90 , 4.94 , 4.98 , 5.00 , 5.02 , 5.19 , 5.20 , 5.31 , 5.34 , 5.50 , 5.55 , 5.69 , 5.87 , 5.88 , 5.90 , 6.00 , 6.05 , 6.18 , 6.25 , 6.87 , 7.00 , 7.06 , 7.12 , 7.13 , 7.37 , 7.40 , 7.48 , 7.50 , 7.56 , 7.63 , 7.75 , 7.81 , 7.88 , 8.00 , 8.19 , 8.50 , 9.00 , 9.12 , 9.25 , 9.50
D (IN)	0.03 , 0.04 , 0.05 , 0.06 , 0.07 , 0.08 , 0.09 , 0.10 , 0.11 , 0.12 , 0.13 , 0.14 , 0.16 , 0.18 , 0.22 , 0.24 , 0.25 , 0.26 , 0.27 , 0.28 , 0.30 , 0.31 , 0.32 , 0.33 , 0.34 , 0.35 , 0.36 , 0.37 , 0.38 , 0.39 , 0.40 , 0.41 , 0.42 , 0.43 , 0.44 , 0.45 , 0.46 , 0.47 , 0.48 , 0.49 , 0.50 , 0.51 , 0.52 , 0.53 , 0.54 , 0.55 , 0.56 , 0.57 , 0.58 , 0.59 , 0.6 , 0.61 , 0.62 , 0.63 , 0.65 , 0.66 , 0.67 , 0.69 , 0.70 , 0.71 , 0.72 , 0.74 , 0.75 , 0.76 , 0.78 , 0.79 , 0.80 , 0.81 , 0.82 , 0.83 , 0.84 , 0.85 , 0.86 , 0.87 , 0.88 , 0.90 , 0.91 , 0.93 , 0.94 , 0.95 , 0.97 , 1.00 , 1.02 , 1.06 , 1.07 , 1.08 , 1.10 , 1.11 , 1.13 , 1.14 , 1.16 , 1.17 , 1.18 , 1.19 , 1.20 , 1.22 , 1.24 , 1.25 , 1.29 , 1.30 , 1.31 , 1.32 , 1.33 , 1.34 , 1.37 , 1.38 , 1.41 , 1.43 , 1.44 , 1.46 , 1.47 , 1.48 , 1.50 , 1.53 , 1.56 , 1.58 , 1.63 , 1.64 , 1.65 , 1.66 , 1.69 , 1.70 , 1.71 , 1.73 , 1.74 , 1.75 , 1.77 , 1.80 , 1.81 , 1.83 , 1.84 , 1.88 , 1.90 , 1.9063 , 1.94 , 11.00 , 12.62 , 15.00 , 17.00 , 2.00 , 2.01 , 2.05 , 2.08 , 2.12 , 2.13 , 2.14 , 2.16 , 2.19 , 2.20 , 2.24 , 2.25 , 2.31 , 2.33 , 2.36 , 2.38 , 2.40 , 2.41 , 2.50 , 2.55 , 2.56 , 2.57 , 2.59 , 2.60 , 2.62 , 2.70 , 2.73 , 2.84 , 2.85 , 2.8750 , 2.88 , 2.92 , 2.95 , 3.00 , 3.01 , 3.04 , 3.12 , 3.16 , 3.20 , 3.25 , 3.2500 , 3.28 , 3.30 , 3.31 , 3.34 , 3.35 , 3.42 , 3.45 , 3.50 , 3.53 , 3.54 , 3.62 , 3.63 , 3.70 , 3.80 , 3.85 , 4.00 , 4.13 , 4.17 , 4.35 , 4.39 , 4.42 , 4.44 , 4.62 , 4.64 , 4.69 , 4.88 , 5 , 5.44 , 5.50 , 5.88 , 6.00 , 6.29 , 7.25 , 7.31 , 7.37 , 7.50 , 7.75 , 7.78 , 7.87 , 8.00 , 8.12 , 8.19 , 8.50 , 8.56 , 8.62 , 8.63 , 9.25
E (IN)	0.16 , 0.19 , 0.21 , 0.23 , 0.24 , 0.25 , 0.2500-20 , 0.26 , 0.27 , 0.29 , 0.30 , 0.31 , 0.3175-18 , 0.33 , 0.35 , 0.37 , 0.3750-16 , 0.38 , 0.39 , 0.40 , 0.42 , 0.43 , 0.44 , 0.46 , 0.47 , 0.48 , 0.50 , 0.5000-13 , 0.52 , 0.55 , 0.56 , 0.57 , 0.59 , 0.60 , 0.62 , 0.6250-11 , 0.63 , 0.69 , 0.70 , 0.73 , 0.75 , 0.7500-10 , 0.76 , 0.78 , 0.80 , 0.84 , 0.85 , 0.87 , 0.88 , 0.90 , 0.92 , 0.97 , 1.00 , 1.11 , 1.12 , 1.15 , 1.18 , 1.22 , 1.25 , 1.28 , 1.31 , 1.34 , 1.43 , 1.44 , 1.46 , 1.50 , 1.53 , 1.56 , 1.66 , 1.68 , 1.74 , 1.81 , 1.87 , 1.88 , 1.90 , 1.97 , 10.7500 , 12.0000 , 2.05 , 2.13 , 2.28 , 2.33 , 2.36 , 2.38 , 2.42 , 2.48 , 2.63 , 2.68 , 2.81 , 2.83 , 2.97 , 3.00 , 3.25 , 3.47 , 3.50 , 4.12 , 4.25 , 7.1875
WLL (TONS)	0.33 , 0.50 , 0.75 , 1.00 , 1.50 , 12.00 , 12.50 , 13.50 , 15.00 , 17.00 , 18.00 , 2.00 , 2.60 , 25.00 , 3.25 , 3.33 , 3.40 , 35.00 , 4.75 , 42.50 , 45.00 , 5.00 , 55.00 , 6.50 , 7.00 , 8.50 , 85.00 , 9.50
Color	Black

You may also like

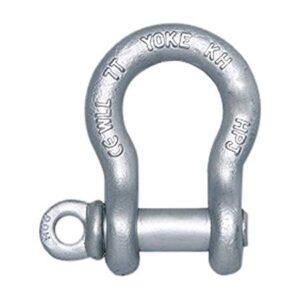

Anchor Shackle (Screw Pin) - Yoke 8-807
