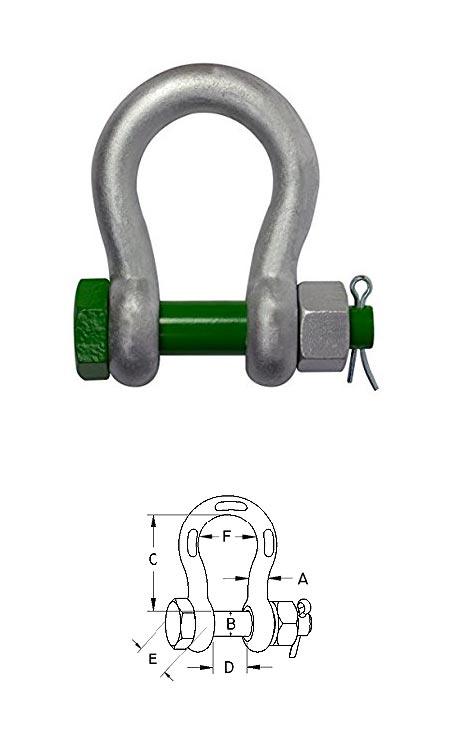

Anchor Shackle (Safety Bolt) – Van Beest G-4163

Configuration

Available Options

SKU	A (IN)	B (IN)	C (IN)	D (IN)	E (IN)	F (IN)	WLL (TONS)	Price	Quantity	SubTotal
SHGSA14VB	1/4	5/16	1-5/32	15/32	21/32	25/32	0.50	$17.06	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA516VB	5/16	3/8	1-1/4	17/32	25/32	7/8	0.75	$17.06	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA38VB	3/8	7/16	1-7/16	21/32	7/8	1-1/32	1.00	$17.29	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA12VB	1/2	5/8	2	7/8	1-11/32	1-1/4	2.00	$23.56	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA58VB	5/8	3/4	2-17/32	1-1/16	1-9/16	1-11/16	3.25	$28.29	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA34VB	3/4	7/8	3	1-7/32	1-13/16	2	4.75	$36.87	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA78VB	7/8	1	3-9/32	1-13/32	2-1/16	2-9/32	6.50	$49.12	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA1VB	1	1-1/8	3-3/4	1-11/16	2-5/16	2-11/16	8.50	$70.27	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA118VB	1-1/8	1-1/4	4-1/4	1-27/32	2-19/32	2-15/16	9.50	$103.26	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA138VB	1-3/8	1-1/2	5-1/4	2-1/4	3-5/32	3-5/8	13.50	$162.35	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA112VB	1-1/2	1-5/8	5-3/4	2-3/8	3-15/32	3-29/32	17.00	$219.11	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA134VB	1-3/4	2	7	2-29/32	4-1/16	4-31/32	25.00	$327.85	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA2VB	2	2-1/4	7-3/4	3-9/32	4-3/8	5-7/16	35.00	$425.71	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA214VB	2-1/4	2-9/16	8-3/4	3-3/4	5-1/8	6-5/16	42.50	$933.27	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$
SHGSA212VB	2-1/2	2-3/4	10-1/4	4-1/8	5-23/32	7-3/32	55.00	$1,111.49	Anchor Shackle (Safety Bolt) - Van Beest G-4163 quantity	$

Additional information

Weight	N/A
A (IN)	0.09 , 0.10 , 0.12 , 0.14 , 0.20 , 0.24 , 0.25 , 0.27 , 0.28 , 0.29 , 0.32 , 0.34 , 0.36 , 0.37 , 0.3700 , 0.38 , 0.39 , 0.41 , 0.42 , 0.45 , 0.46 , 0.47 , 0.4700 , 0.48 , 0.51 , 0.52 , 0.53 , 0.54 , 0.56 , 0.59 , 0.60 , 0.62 , 0.63 , 0.67 , 0.68 , 0.75 , 0.76 , 0.77 , 0.78 , 0.7800 , 0.79 , 0.80 , 0.83 , 0.85 , 0.87 , 0.88 , 0.90 , 0.94 , 0.95 , 0.96 , 1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-1/8 , 1-3/4 , 1-3/8 , 1.01 , 1.05 , 1.06 , 1.12 , 1.24 , 1.28 , 1.31 , 1.42 , 1/16 , 1/2 , 1/2 , 1/4 , 1/8 , 1/8-3/16 , 11/16 , 11/32 , 15/32 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 3 , 3-1/2 , 3-3/4 , 3/16 , 3/4 , 3/8 , 3/8 , 4 , 4-3/4 , 5/16 , 5/16 , 5/32 , 5/8 , 6 , 7/16 , 7/32 , 7/8 , 9/16 , 9/32
B (IN)	1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-3/8 , 1-5/8 , 1/2 , 1/4 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 2-9/16 , 3 , 3-1/4 , 3/4 , 3/8 , 5/16 , 5/8 , 7/16 , 7/8
C (IN)	1-1/4 , 1-1/8 , 1-11/16 , 1-15/16 , 1-5/32 , 1-7/16 , 1/2 , 10-1/4 , 12-15/16 , 2 , 2-1/2 , 2-17/32 , 3 , 3-1/4 , 3-3/4 , 3-9/32 , 4-1/2 , 4-1/4 , 4-17/32 , 5-1/4 , 5-3/4 , 7 , 7-3/4 , 7/8 , 8-3/4
D (IN)	1-1/16 , 1-1/4 , 1-11/16 , 1-13/16 , 1-13/32 , 1-27/32 , 1-7/16 , 1-7/32 , 13/16 , 15/32 , 17/32 , 2 , 2-1/4 , 2-29/32 , 2-3/8 , 21/32 , 23/32 , 3-3/4 , 3-9/32 , 3.16 , 3/8 , 4-1/8 , 5 , 7/8
E (IN)	1-1/32 , 1-11/32 , 1-13/16 , 1-9/16 , 2-1/16 , 2-19/32 , 2-27/32 , 2-5/16 , 21/32 , 25/32 , 3-15/32 , 3-5/32 , 3/8 , 4-1/16 , 4-3/8 , 5-1/8 , 5-23/32 , 6-3/8 , 7/8
F (IN)	1-1/2 , 1-1/32 , 1-1/4 , 1-1/8 , 1-11/16 , 1-5/16 , 1-7/8 , 15/16 , 2 , 2-11/16 , 2-15/16 , 2-3/4 , 2-5/8 , 2-9/32 , 25/32 , 3-1/2 , 3-1/4 , 3-29/32 , 3-3/4 , 3-5/8 , 3-9/32 , 3/4 , 4-31/32 , 5-7/16 , 5/8 , 6-5/16 , 7-15/32 , 7-3/32 , 7/8 , 9/16
WLL (TONS)	0.33 , 0.50 , 0.75 , 1.00 , 1.50 , 12.00 , 12.50 , 13.50 , 15.00 , 17.00 , 18.00 , 2.00 , 2.60 , 25.00 , 3.25 , 3.33 , 3.40 , 35.00 , 4.75 , 42.50 , 45.00 , 5.00 , 55.00 , 6.50 , 7.00 , 8.50 , 85.00 , 9.50
