Bolt Anchor Shackle - Import

Click to enlarge

SKU: SHGSA-C

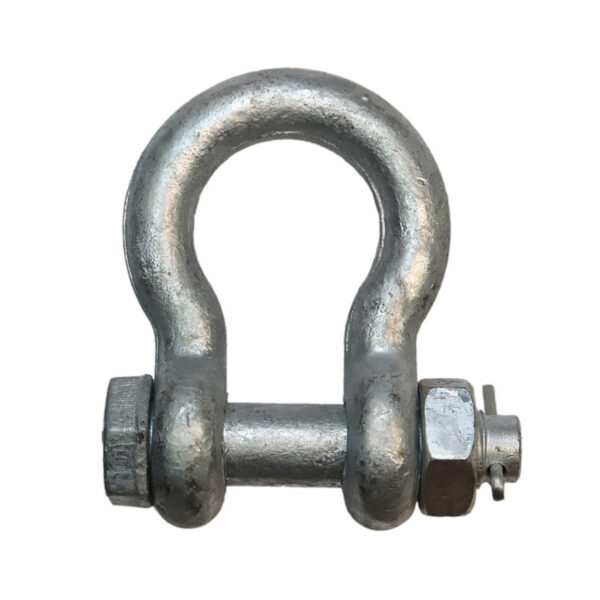

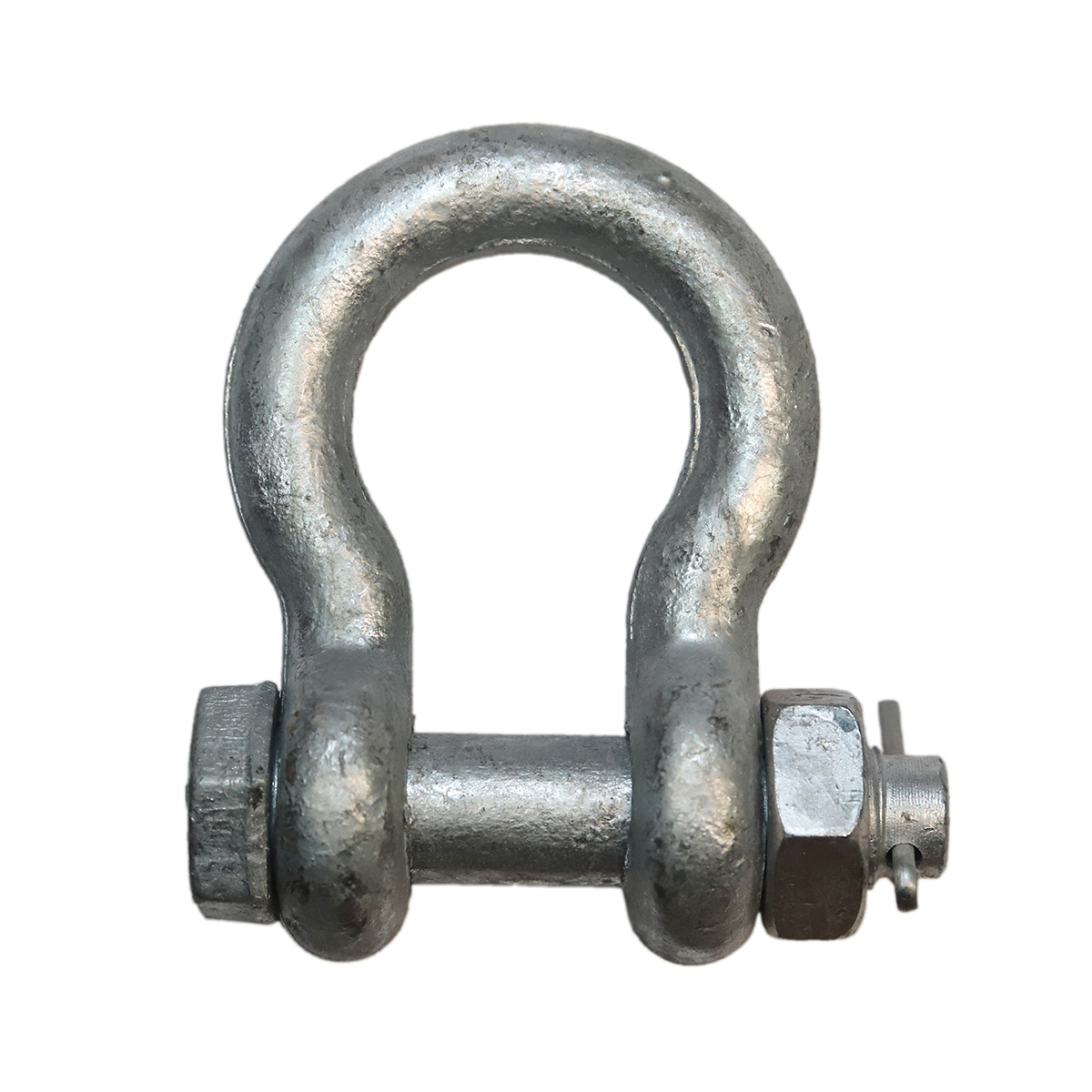

Bolt Anchor Shackle – Import

Galvanized, Import

Configuration

Available Options

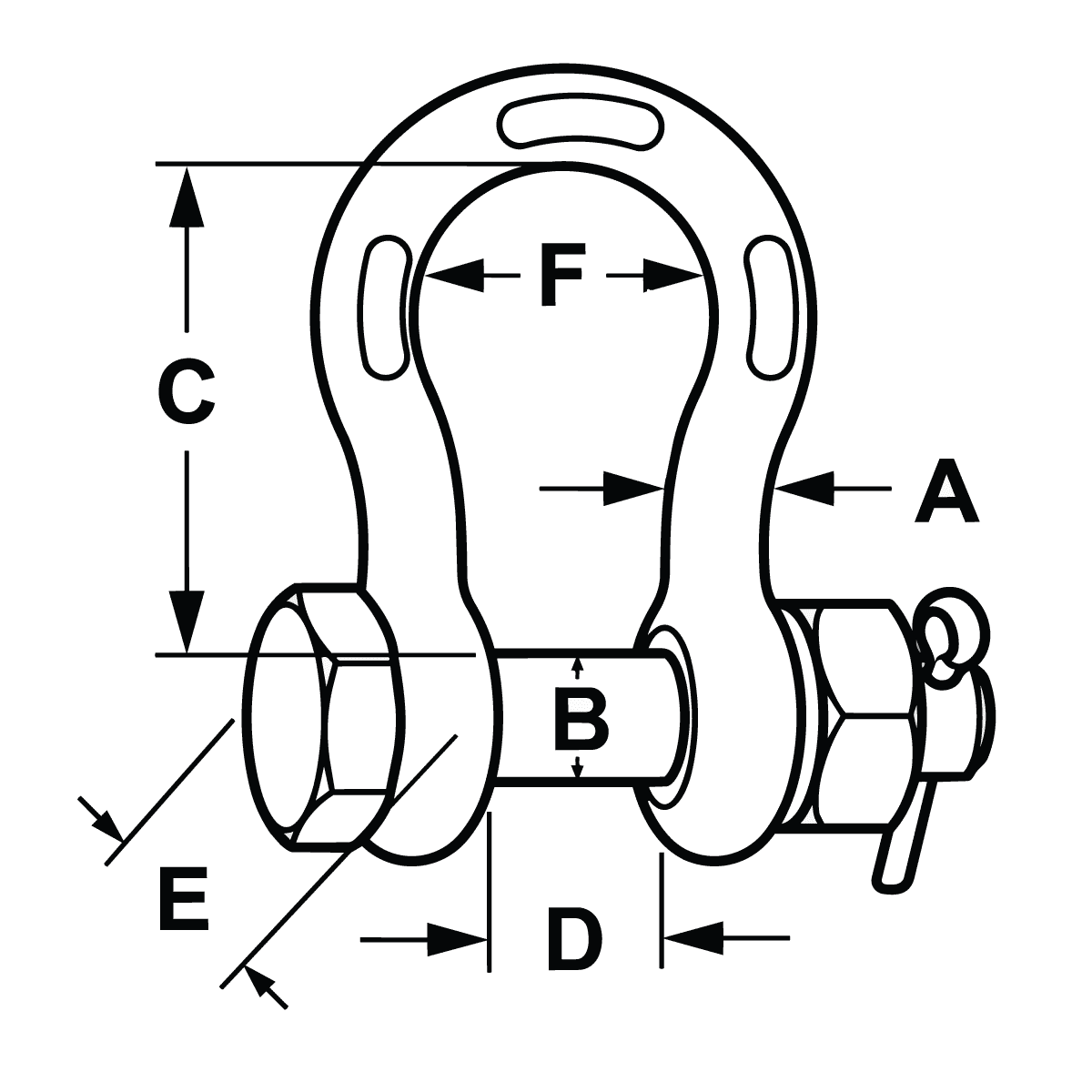

SKU	A (IN)	B (IN)	C (IN)	D (IN)	E (IN)	F (IN)	WLL (TONS)	Price	Quantity		SubTotal
SHGSA134	1-3/4	2	7.06	2.88	4.25	4.88	25.00	$155.64	Bolt Anchor Shackle - Import quantity		$
SHGSA12	1/2	5/8	1.88	0.81	1.31	1.25	2.00	$5.58	Bolt Anchor Shackle - Import quantity		$
SHGSA58	5/8	3/4	2.44	1.06	1.56	1.94	3.25	$7.44	Bolt Anchor Shackle - Import quantity		$
SHGSA34	3/4	7/8	2.88	1.19	1.88	1.97	4.75	$10.06	Bolt Anchor Shackle - Import quantity		$
SHGSA78	7/8	1	3.38	1.44	2.13	2.19	6.50	$19.04	Bolt Anchor Shackle - Import quantity		$
SHGSA1	1	1-1/8	3.81	1.69	2.38	2.63	8.50	$43.52	Bolt Anchor Shackle - Import quantity		$
SHGSA118	1-1/8	1-1/4	4.25	1.75	2.63	2.88	9.50	$31.69	Bolt Anchor Shackle - Import quantity		$
SHGSA114	1-1/4	1-3/8	4.69	2.00	3.00	3.13	12.00	$51.82	Bolt Anchor Shackle - Import quantity		$
SHGSA138	1-3/8	1-1/2	5.31	2.13	3.25	3.50	13.50	$107.44	Bolt Anchor Shackle - Import quantity		$
SHGSA112	1-1/2	1-5/8	5.69	2.31	3.50	3.75	17.00	$100.10	Bolt Anchor Shackle - Import quantity		$

Description
Additional information

These are bolt type anchor shackles, the shackles bodies are drop-forged carbon steel.

Standard finish: self-colored or galvanized to meet ASTM A-153 specifications
Permanently marked with size and WLL
Meets the requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 3

Weight	0.9 lbs
A (IN)	0.09 , 0.10 , 0.12 , 0.14 , 0.20 , 0.24 , 0.25 , 0.27 , 0.28 , 0.29 , 0.32 , 0.34 , 0.36 , 0.37 , 0.3700 , 0.38 , 0.39 , 0.41 , 0.42 , 0.45 , 0.46 , 0.47 , 0.4700 , 0.48 , 0.51 , 0.52 , 0.53 , 0.54 , 0.56 , 0.59 , 0.60 , 0.62 , 0.63 , 0.67 , 0.68 , 0.75 , 0.76 , 0.77 , 0.78 , 0.7800 , 0.79 , 0.80 , 0.83 , 0.85 , 0.87 , 0.88 , 0.90 , 0.94 , 0.95 , 0.96 , 1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-1/8 , 1-3/4 , 1-3/8 , 1.01 , 1.05 , 1.06 , 1.12 , 1.24 , 1.28 , 1.31 , 1.42 , 1/16 , 1/2 , 1/2 , 1/4 , 1/8 , 1/8-3/16 , 11/16 , 11/32 , 15/32 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 3 , 3-1/2 , 3-3/4 , 3/16 , 3/4 , 3/8 , 3/8 , 4 , 4-3/4 , 5/16 , 5/16 , 5/32 , 5/8 , 6 , 7/16 , 7/32 , 7/8 , 9/16 , 9/32
B (IN)	1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-3/8 , 1-5/8 , 1/2 , 1/4 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 2-9/16 , 3 , 3-1/4 , 3/4 , 3/8 , 5/16 , 5/8 , 7/16 , 7/8
C (IN)	0.08 , 0.15 , 0.18 , 0.19 , 0.20 , 0.22 , 0.23 , 0.25 , 0.27 , 0.29 , 0.30 , 0.31 , 0.32 , 0.33 , 0.34 , 0.35 , 0.36 , 0.37 , 0.38 , 0.39 , 0.40 , 0.41 , 0.42 , 0.43 , 0.45 , 0.46 , 0.47 , 0.48 , 0.49 , 0.50 , 0.51 , 0.52 , 0.53 , 0.54 , 0.55 , 0.56 , 0.57 , 0.58 , 0.59 , 0.60 , 0.61 , 0.62 , 0.63 , 0.65 , 0.66 , 0.67 , 0.68 , 0.69 , 0.70 , 0.71 , 0.72 , 0.73 , 0.75 , 0.76 , 0.78 , 0.79 , 0.80 , 0.82 , 0.83 , 0.87 , 0.88 , 0.90 , 0.92 , 0.93 , 0.94 , 0.95 , 0.97 , 1.00 , 1.01 , 1.02 , 1.04 , 1.05 , 1.06 , 1.08 , 1.09 , 1.11 , 1.12 , 1.14 , 1.15 , 1.17 , 1.19 , 1.20 , 1.23 , 1.24 , 1.25 , 1.27 , 1.28 , 1.31 , 1.32 , 1.34 , 1.37 , 1.38 , 1.40 , 1.42 , 1.44 , 1.45 , 1.46 , 1.48 , 1.50 , 1.53 , 1.54 , 1.56 , 1.57 , 1.62 , 1.67 , 1.68 , 1.69 , 1.70 , 1.71 , 1.72 , 1.73 , 1.75 , 1.83 , 1.8438 , 1.85 , 1.86 , 1.87 , 1.88 , 1.89 , 1.90 , 1.94 , 1.95 , 1.97 , 10.25 , 10.37 , 10.38 , 10.50 , 10.63 , 10.75 , 10.81 , 10.87 , 11.00 , 11.50 , 11.62 , 12.00 , 12.50 , 13.00 , 13.50 , 14.00 , 14.25 , 14.32 , 14.50 , 14.81 , 15.00 , 15.13 , 15.50 , 15.63 , 16.25 , 17.00 , 17.31 , 18.00 , 19.00 , 2.00 , 2.03 , 2.05 , 2.08 , 2.12 , 2.25 , 2.26 , 2.32 , 2.37 , 2.38 , 2.40 , 2.41 , 2.42 , 2.44 , 2.50 , 2.52 , 2.53 , 2.56 , 2.62 , 2.63 , 2.75 , 2.77 , 2.83 , 2.8750 , 2.88 , 2.92 , 20.00 , 24.00 , 25.00 , 25.50 , 26.63 , 27.50 , 28.38 , 3.00 , 3.10 , 3.13 , 3.18 , 3.25 , 3.2500 , 3.36 , 3.38 , 3.39 , 3.41 , 3.44 , 3.70 , 3.72 , 3.78 , 3.81 , 3.92 , 3.98 , 4.00 , 4.20 , 4.25 , 4.32 , 4.37 , 4.48 , 4.50 , 4.63 , 4.69 , 4.71 , 4.72 , 4.75 , 4.76 , 4.90 , 4.94 , 4.98 , 5.00 , 5.02 , 5.19 , 5.20 , 5.31 , 5.34 , 5.50 , 5.55 , 5.69 , 5.87 , 5.88 , 5.90 , 6.00 , 6.05 , 6.18 , 6.25 , 6.87 , 7.00 , 7.06 , 7.12 , 7.13 , 7.37 , 7.40 , 7.48 , 7.50 , 7.56 , 7.63 , 7.75 , 7.81 , 7.88 , 8.00 , 8.19 , 8.50 , 9.00 , 9.12 , 9.25 , 9.50
D (IN)	0.03 , 0.04 , 0.05 , 0.06 , 0.07 , 0.08 , 0.09 , 0.10 , 0.11 , 0.12 , 0.13 , 0.14 , 0.16 , 0.18 , 0.22 , 0.24 , 0.25 , 0.26 , 0.27 , 0.28 , 0.30 , 0.31 , 0.32 , 0.33 , 0.34 , 0.35 , 0.36 , 0.37 , 0.38 , 0.39 , 0.40 , 0.41 , 0.42 , 0.43 , 0.44 , 0.45 , 0.46 , 0.47 , 0.48 , 0.49 , 0.50 , 0.51 , 0.52 , 0.53 , 0.54 , 0.55 , 0.56 , 0.57 , 0.58 , 0.59 , 0.6 , 0.61 , 0.62 , 0.63 , 0.65 , 0.66 , 0.67 , 0.69 , 0.70 , 0.71 , 0.72 , 0.74 , 0.75 , 0.76 , 0.78 , 0.79 , 0.80 , 0.81 , 0.82 , 0.83 , 0.84 , 0.85 , 0.86 , 0.87 , 0.88 , 0.90 , 0.91 , 0.93 , 0.94 , 0.95 , 0.97 , 1.00 , 1.02 , 1.06 , 1.07 , 1.08 , 1.10 , 1.11 , 1.13 , 1.14 , 1.16 , 1.17 , 1.18 , 1.19 , 1.20 , 1.22 , 1.24 , 1.25 , 1.29 , 1.30 , 1.31 , 1.32 , 1.33 , 1.34 , 1.37 , 1.38 , 1.41 , 1.43 , 1.44 , 1.46 , 1.47 , 1.48 , 1.50 , 1.53 , 1.56 , 1.58 , 1.63 , 1.64 , 1.65 , 1.66 , 1.69 , 1.70 , 1.71 , 1.73 , 1.74 , 1.75 , 1.77 , 1.80 , 1.81 , 1.83 , 1.84 , 1.88 , 1.90 , 1.9063 , 1.94 , 11.00 , 12.62 , 15.00 , 17.00 , 2.00 , 2.01 , 2.05 , 2.08 , 2.12 , 2.13 , 2.14 , 2.16 , 2.19 , 2.20 , 2.24 , 2.25 , 2.31 , 2.33 , 2.36 , 2.38 , 2.40 , 2.41 , 2.50 , 2.55 , 2.56 , 2.57 , 2.59 , 2.60 , 2.62 , 2.70 , 2.73 , 2.84 , 2.85 , 2.8750 , 2.88 , 2.92 , 2.95 , 3.00 , 3.01 , 3.04 , 3.12 , 3.16 , 3.20 , 3.25 , 3.2500 , 3.28 , 3.30 , 3.31 , 3.34 , 3.35 , 3.42 , 3.45 , 3.50 , 3.53 , 3.54 , 3.62 , 3.63 , 3.70 , 3.80 , 3.85 , 4.00 , 4.13 , 4.17 , 4.35 , 4.39 , 4.42 , 4.44 , 4.62 , 4.64 , 4.69 , 4.88 , 5 , 5.44 , 5.50 , 5.88 , 6.00 , 6.29 , 7.25 , 7.31 , 7.37 , 7.50 , 7.75 , 7.78 , 7.87 , 8.00 , 8.12 , 8.19 , 8.50 , 8.56 , 8.62 , 8.63 , 9.25
E (IN)	0.16 , 0.19 , 0.21 , 0.23 , 0.24 , 0.25 , 0.2500-20 , 0.26 , 0.27 , 0.29 , 0.30 , 0.31 , 0.3175-18 , 0.33 , 0.35 , 0.37 , 0.3750-16 , 0.38 , 0.39 , 0.40 , 0.42 , 0.43 , 0.44 , 0.46 , 0.47 , 0.48 , 0.50 , 0.5000-13 , 0.52 , 0.55 , 0.56 , 0.57 , 0.59 , 0.60 , 0.62 , 0.6250-11 , 0.63 , 0.69 , 0.70 , 0.73 , 0.75 , 0.7500-10 , 0.76 , 0.78 , 0.80 , 0.84 , 0.85 , 0.87 , 0.88 , 0.90 , 0.92 , 0.97 , 1.00 , 1.11 , 1.12 , 1.15 , 1.18 , 1.22 , 1.25 , 1.28 , 1.31 , 1.34 , 1.43 , 1.44 , 1.46 , 1.50 , 1.53 , 1.56 , 1.66 , 1.68 , 1.74 , 1.81 , 1.87 , 1.88 , 1.90 , 1.97 , 10.7500 , 12.0000 , 2.05 , 2.13 , 2.28 , 2.33 , 2.36 , 2.38 , 2.42 , 2.48 , 2.63 , 2.68 , 2.81 , 2.83 , 2.97 , 3.00 , 3.25 , 3.47 , 3.50 , 4.12 , 4.25 , 7.1875
F (IN)	0.23 , 0.62 , 0.63 , 0.75 , 0.84 , 0.89 , 1.00 , 1.02 , 1.08 , 1.13 , 1.18 , 1.25 , 1.26 , 1.30 , 1.58 , 1.69 , 1.71 , 1.77 , 1.90 , 1.94 , 1.97 , 2.19 , 2.28 , 2.35 , 2.63 , 2.68 , 2.88 , 2.91 , 3.13 , 3.22 , 3.37 , 3.50 , 3.64 , 3.75 , 4.88
WLL (TONS)	0.33 , 0.50 , 0.75 , 1.00 , 1.50 , 12.00 , 12.50 , 13.50 , 15.00 , 17.00 , 18.00 , 2.00 , 2.60 , 25.00 , 3.25 , 3.33 , 3.40 , 35.00 , 4.75 , 42.50 , 45.00 , 5.00 , 55.00 , 6.50 , 7.00 , 8.50 , 85.00 , 9.50
