Anchor Shackle (Screw Pin) – G-4161 Van Beest

Name: Anchor Shackle (Screw Pin) - G-4161 Van Beest
SKU: SHG-CVB
Availability: InStock

Made in Netherlands, galvanized anchor shacke with green alloy pin.

G-4161

Configuration

Available Options

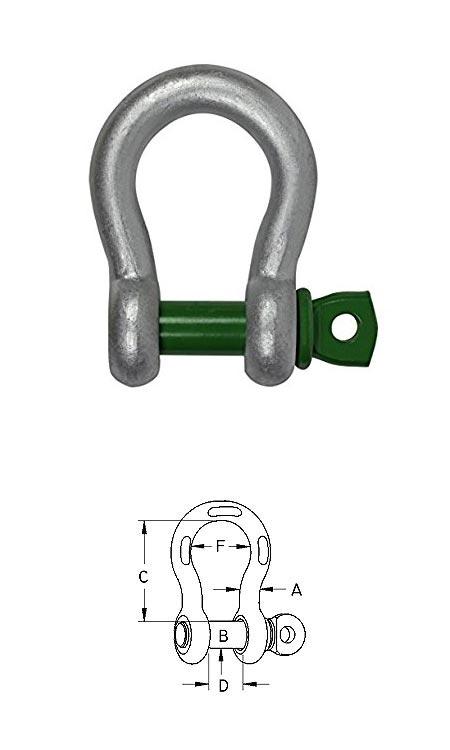

SKU	A (IN)	B (IN)	C (IN)	D (IN)	F (IN)	WLL (TONS)	Price	Quantity	SubTotal
SHG316VB	3/16	1/4	7/8	3/8	5/8	0.33	$4.12	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG38VB	3/8	7/16	1-7/16	21/32	1-1/32	1.00	$5.56	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG12VB	1/2	5/8	2	7/8	1-1/4	2.00	$10.14	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG58VB	5/8	3/4	2-17/32	1-1/16	1-11/16	3.25	$27.15	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG34VB	3/4	7/8	3	1-7/32	2	4.75	$19.32	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG78VB	7/8	1	3-9/32	1-13/32	2-9/32	6.50	$33.59	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG1VB	1	1-1/8	3-3/4	1-11/16	2-11/16	8.50	$37.02	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG118VB	1-1/8	1-1/4	4-1/4	1-27/32	2-15/16	9.50	$69.22	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG114VB	1-1/4	1-3/8	4-17/32	2	3-9/32	12.00	$86.02	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG138VB	1-3/8	1-1/2	5-1/4	2-1/4	3-5/8	13.50	$80.72	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG112VB	1-1/2	1-5/8	5-3/4	2-3/8	3-29/32	17.00	$117.43	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG134VB	1-3/4	2	7	2-29/32	4-31/32	25.00	$194.81	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG2VB	2	2-1/4	7-3/4	3-9/32	5-7/16	35.00	$323.31	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$
SHG212VB	2-1/2	2-3/4	10-1/4	4-1/8	7-3/32	55.00	$617.74	Anchor Shackle (Screw Pin) - G-4161 Van Beest quantity	$

Description
Additional information

These are hot-dipped galvanized shackle. Mainly used for non-permanent applications.

These shackles comply with ASME B30.36
Meets Federal Specification RR-C-271 Type IVA Class 2, Grade A, Class 2

We choose Van Beest shackles over domestic because it’s cost effective with similar working load limit.

Weight	1 lbs
