SKU: SHG-CCT

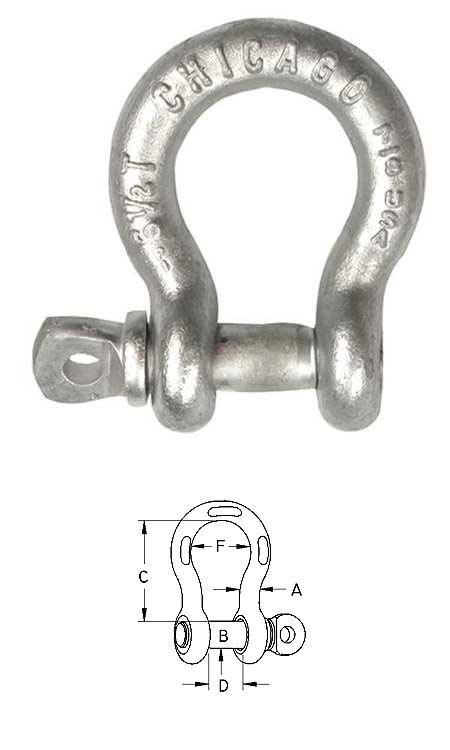

Anchor Shackle (Screw Pin) – Chicago

Made in USA, galvanized anchor shackle with screw pin

Configuration

Available Options

SKU	A (IN)	B (IN)	C (IN)	D (IN)	F (IN)	WLL (TONS)	Price	Quantity		SubTotal
SHG316CT	3/16	1/4	7/8	3/8	9/16	0.33	$6.84	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG14CT	1/4	5/16	1-1/8	15/32	3/4	0.50	$6.88	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG516CT	5/16	3/8	1-1/4	17/32	15/16	0.75	$8.68	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG38CT	3/8	7/16	1-7/16	21/32	1-1/8	1.00	$9.88	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG716CT	7/16	1/2	1-11/16	23/32	1-5/16	1.50	$11.45	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG12CT	1/2	5/8	1-15/16	13/16	1-1/2	2.00	$13.34	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG58CT	5/8	3/4	2-1/2	1-1/16	1-7/8	3.25	$24.59	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG34CT	3/4	7/8	3	1-1/4	2	4.75	$36.06	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG78CT	7/8	1	3-1/4	1-7/16	2-5/8	6.50	$49.50	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG1CT	1	1-1/8	3-3/4	1-11/16	2-3/4	8.50	$66.15	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG118CT	1-1/8	1-1/4	4-1/4	1-13/16	2-15/16	9.50	$98.27	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG114CT	1-1/4	1-3/8	4-1/2	2	3-1/4	12.00	$140.68	Anchor Shackle (Screw Pin) - Chicago quantity		$
SHG112CT	1-1/2	1-5/8	5-3/4	2-3/8	3-3/4	17.00	$217.47	Anchor Shackle (Screw Pin) - Chicago quantity		$

Description
Additional information

These are domestic anchor shackles from Chicago, the shackle bodies are drop-forged carbon steel.

Standard finish is self-colored or galvanized to meet ASTM A-153 specifications.
WLL permanently stamped on every scale.
Design factor; 6:1
Meets Federal Specification RR-C-271, Type IVA, Grade A, Class 2

Weight	1 lbs
A (IN)	0.09 , 0.10 , 0.12 , 0.14 , 0.20 , 0.24 , 0.25 , 0.27 , 0.28 , 0.29 , 0.32 , 0.34 , 0.36 , 0.37 , 0.3700 , 0.38 , 0.39 , 0.41 , 0.42 , 0.45 , 0.46 , 0.47 , 0.4700 , 0.48 , 0.51 , 0.52 , 0.53 , 0.54 , 0.56 , 0.59 , 0.60 , 0.62 , 0.63 , 0.67 , 0.68 , 0.75 , 0.76 , 0.77 , 0.78 , 0.7800 , 0.79 , 0.80 , 0.83 , 0.85 , 0.87 , 0.88 , 0.90 , 0.94 , 0.95 , 0.96 , 1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-1/8 , 1-3/4 , 1-3/8 , 1.01 , 1.05 , 1.06 , 1.12 , 1.24 , 1.28 , 1.31 , 1.42 , 1/16 , 1/2 , 1/2 , 1/4 , 1/8 , 1/8-3/16 , 11/16 , 11/32 , 15/32 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 3 , 3-1/2 , 3-3/4 , 3/16 , 3/4 , 3/8 , 3/8 , 4 , 4-3/4 , 5/16 , 5/16 , 5/32 , 5/8 , 6 , 7/16 , 7/32 , 7/8 , 9/16 , 9/32
B (IN)	1 , 1-1/2 , 1-1/4 , 1-1/8 , 1-3/8 , 1-5/8 , 1/2 , 1/4 , 2 , 2-1/2 , 2-1/4 , 2-3/4 , 2-9/16 , 3 , 3-1/4 , 3/4 , 3/8 , 5/16 , 5/8 , 7/16 , 7/8
C (IN)	1-1/4 , 1-1/8 , 1-11/16 , 1-15/16 , 1-5/32 , 1-7/16 , 1/2 , 10-1/4 , 12-15/16 , 2 , 2-1/2 , 2-17/32 , 3 , 3-1/4 , 3-3/4 , 3-9/32 , 4-1/2 , 4-1/4 , 4-17/32 , 5-1/4 , 5-3/4 , 7 , 7-3/4 , 7/8 , 8-3/4
D (IN)	1-1/16 , 1-1/4 , 1-11/16 , 1-13/16 , 1-13/32 , 1-27/32 , 1-7/16 , 1-7/32 , 13/16 , 15/32 , 17/32 , 2 , 2-1/4 , 2-29/32 , 2-3/8 , 21/32 , 23/32 , 3-3/4 , 3-9/32 , 3.16 , 3/8 , 4-1/8 , 5 , 7/8
F (IN)	1-1/2 , 1-1/32 , 1-1/4 , 1-1/8 , 1-11/16 , 1-5/16 , 1-7/8 , 15/16 , 2 , 2-11/16 , 2-15/16 , 2-3/4 , 2-5/8 , 2-9/32 , 25/32 , 3-1/2 , 3-1/4 , 3-29/32 , 3-3/4 , 3-5/8 , 3-9/32 , 3/4 , 4-31/32 , 5-7/16 , 5/8 , 6-5/16 , 7-15/32 , 7-3/32 , 7/8 , 9/16
WLL (TONS)	0.33 , 0.50 , 0.75 , 1.00 , 1.50 , 12.00 , 12.50 , 13.50 , 15.00 , 17.00 , 18.00 , 2.00 , 2.60 , 25.00 , 3.25 , 3.33 , 3.40 , 35.00 , 4.75 , 42.50 , 45.00 , 5.00 , 55.00 , 6.50 , 7.00 , 8.50 , 85.00 , 9.50

You may also like

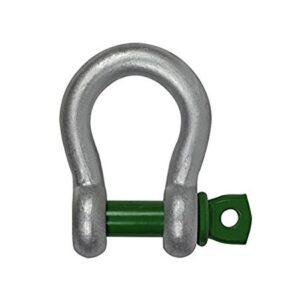

Anchor Shackle (Screw Pin) - Van Beest

Anchor Shackle (Screw Pin) - Van Beest

Add to wishlist

Anchor Shackle (Screw Pin) – G-4161 Van Beest

From $4.12

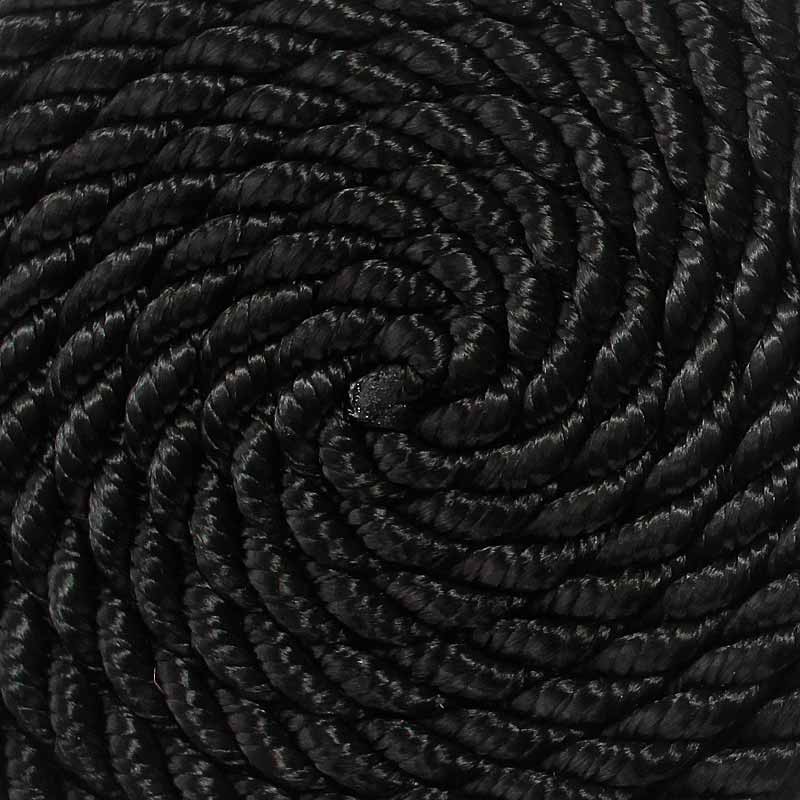

Nylon Double Braid

Nylon Double Braid

Add to wishlist

Nylon Double Braid

From $19.00

Screw Pin Anchor Shackle -Import

Screw Pin Anchor Shackle -Import

Add to wishlist

Screw Pin Anchor Shackle -Import

From $1.21

Add to wishlist

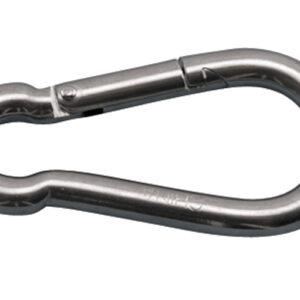

Spring Clip
