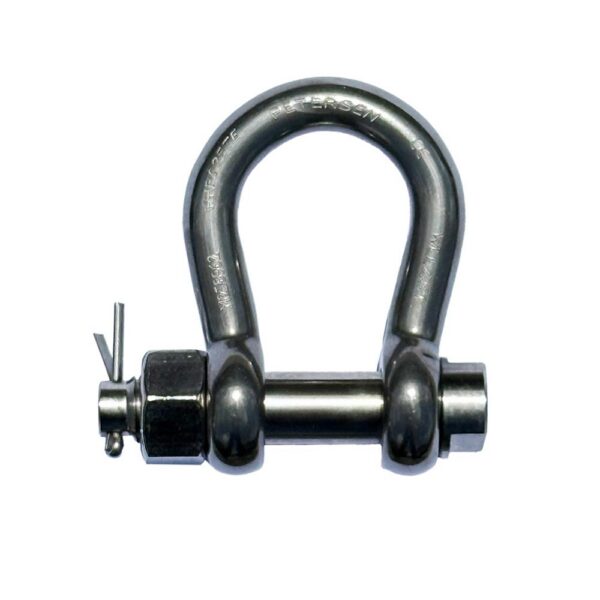

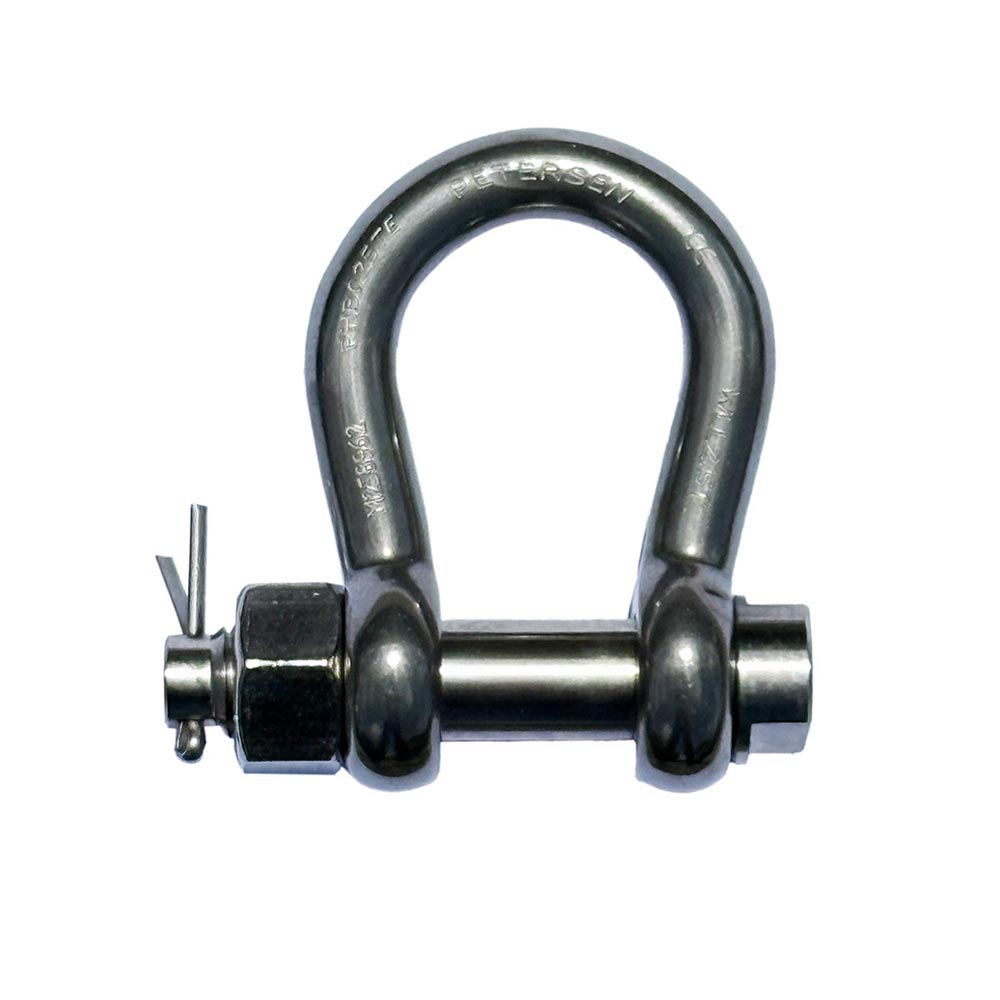

Petersen Bolt Anchor Shackle – High Tensile
High-tensile shackles designed for general lifting applications
Configuration
Available Options
| SKU | Size (IN) | P (IN) | J (IN) | W (IN) | L (IN) | WLL (IN) | WT (TON) | Price | Quantity | SubTotal | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PHB015TE-38 | 3/8 | 1/2 | 0.79 | 1.18 | 1.57 | 1.50 | 0.35 | $116.41 | $ | ||
| PHB025TE-12 | 1/2 | 5/8 | 0.98 | 1.50 | 1.97 | 2.50 | 0.81 | $154.88 | $ | ||
| PHB040TE-58 | 5/8 | 3/4 | 1.26 | 1.89 | 2.52 | 4.00 | 1.27 | $173.46 | $ | ||
| PHB055TE-34 | 3/4 | 7/8 | 1.50 | 2.24 | 3.46 | 5.50 | 2.32 | $292.35 | $ | ||
| PHB075TE-78 | 7/8 | 1 | 1.73 | 2.60 | 4.02 | 7.50 | 4.40 | $442.09 | $ |
Petersen Bolt Anchor Shackles (E Type) are manufactured in England from high-strength 17/4PH precipitation hardening martensitic Stainless Steel. Excellent for general lifting applications – high tensile properties while avoiding work hardening Corrosion resistance similar to 18/8 grade steels. Thick lugs on the shackle pins ensure that the product is both durable and dependable. High quality finish and excellent polish.
• E Type Safety Pin with Standard Nut
• Manufactured in accordance with the Machine Directive 2006/42/EC
• Factor of Safety 6:1
Typical Applications: General lifting in off-shore applications, General lifting and tethering in leisure marine applications and General lifting purposes
| Weight | N/A |
|---|---|
| Size (IN) |
3/8 ,1/2 ,5/8 ,3/4 ,7/8 |
| P (IN) |
1/2 ,5/8 ,3/4 ,7/8 ,1 |
| J (IN) |
0.79 ,0.98 ,1.26 ,1.50 ,1.73 |
| W (IN) |
1.18 ,1.50 ,1.89 ,2.24 ,2.60 |
| L (IN) |
1.57 ,1.97 ,2.52 ,3.00 ,3.46 ,4.02 |
| WLL (IN) |
1.50 ,2.50 ,4.00 ,5.50 ,7.50 |
| WT (TON) |
0.35 ,0.81 ,1.27 ,2.32 ,4.40 |
